2002 Hauser Tripet TST250-4R Cylindrical Grinder - $45,000 (Preston)

2002 Hauser Tripet TST250-4R Cylindrical Grinder 1

2002 Hauser Tripet TST250-4R Cylindrical Grinder 1 thumbnail

google map

condition: good

make / manufacturer: HAUSER

model name / number: TST250-4R

size / dimensions: 8’X3’’X7

QR Code Link to This Post

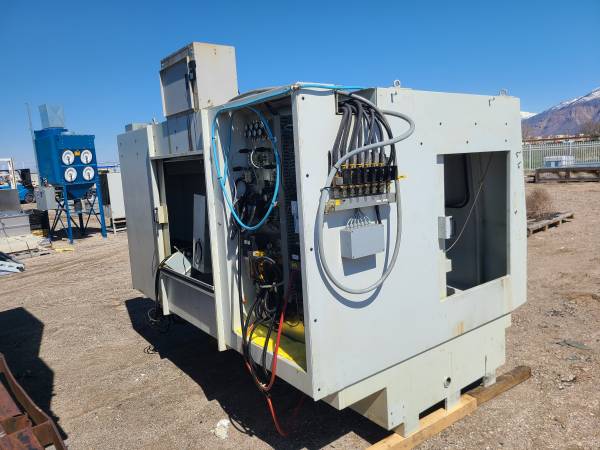

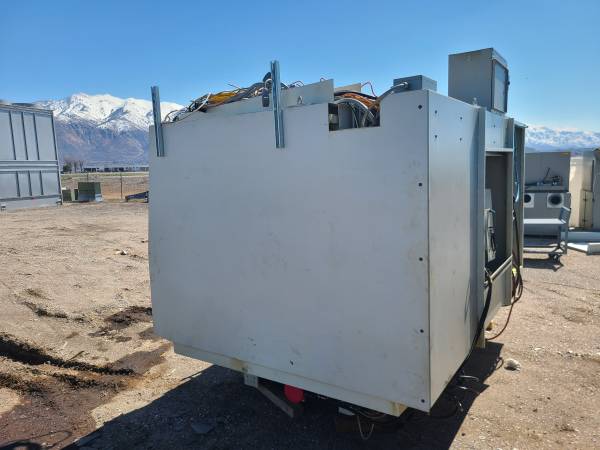

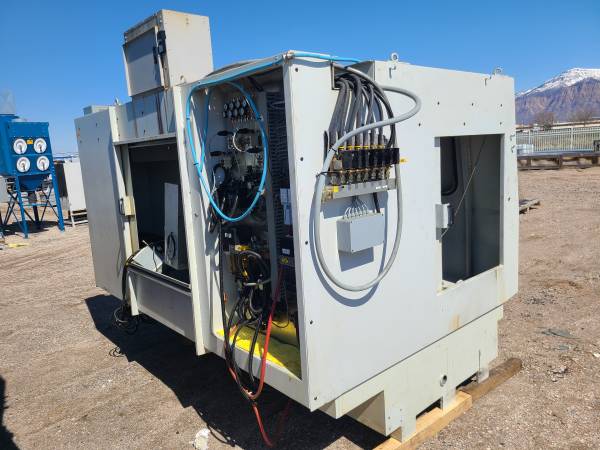

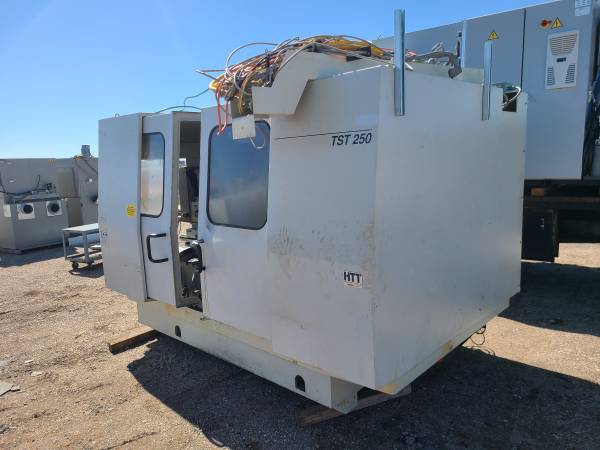

This is a well maintained cylindrical grinder, that was under power when removed from the facility due to routine upgrades.
Manuals included.
Located at our warehouse in Preston, Idaho.

Grinding range
Diameters: Internal/External 400/200 mm
Length: 250mm
Workhead
Height of centers: 260 mm
Spindle end: Camlock 6"
Max. workpiece weight: 100 kg
Form accuracy: <0,0005 mm
Spindle taper: MK 5
Speed range: 45-1500 r.p.m.
Axial adjustment: 350 mm
Workspindle/C-axis
Resolution: 3"
Max. speed without interpolation: 1000 r.p.m.
Max. speed with interpolation 280 r.p.m.
Longitudinal slide/Z-axis
Travel range: 700 mm
Drive: AC motor
Resolution: 0,0001 mm
Programming: 0,0001 mm
Travel speed range: 0-20 m/min
Cross slide/X axis
Travel range: 550 mm
Drive: AC Motor
Resolution: 0,0001 mm
Programming: 0,0001 mm
Travel speed range: 0-18 m/min
Tilting slide/B axis
Tilt range: -15"/+35"
Drive: manual adjustment
Resolution: 1 division = 30"
Wheelhead/T axis
Belt spindles: T2, T4
Speed range: 9,000-90,000 r.p.m.
Power consumption: approx. 60 kVA
Dimensions: 138”X108”X108”
Weight: 28,000 lbs
Power Cabinet
Dimensions: 8’X3’X7’
